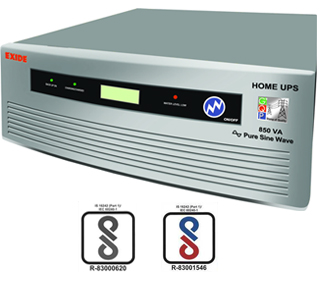

Exide Premium Home UPS System is a high-end DSP based Pure Sine Wave Home UPS with Grid Quality Power Output which guarantees 100% protection and long life of your electrical and electronic appliances.

FEATURES OF EXIDE PURE SINE WAVE – GQP

  • DSP (Digital Signal Processor) based Pure Sine Wave Home UPS and Grid Quality Power same as Mains
  • ASIC (Automatic Sense Intelligent Control) Technology – Automatically senses battery condition and adjusts charging current accordingly and thus increases battery life and minimizes water topping.
  • Programmed inbuilt Cooling Fan which operates automatically when needed
  • Electrolyte Level Sensor indicator – Indicating Battery Water Level Low (Optional)
  • Mains bypass facility
  • LCD Display for better user Interface and displaying the State of Battery Voltage, AC Mains Input Voltage, Actual Applied Load in %age, Overload Protection, Short Circuit Trip Protection, Battery Low Pre Alarm and Trip Protection, AC Mains Fuse Blown Indication as FUSE TRIP & UPS/Normal Mode Selection
  • Protection – Inbuilt high-precision quality protection into Main PCB
Add to quote
Categories: ,

Product Description

Exide Premium Home UPS System is a high-end DSP based Pure Sine Wave Home UPS with Grid Quality Power Output which guarantees 100% protection and long life of your electrical and electronic appliances.

FEATURES OF EXIDE PURE SINE WAVE – GQP

  • DSP (Digital Signal Processor) based Pure Sine Wave Home UPS and Grid Quality Power same as Mains
  • ASIC (Automatic Sense Intelligent Control) Technology – Automatically senses battery condition and adjusts charging current accordingly and thus increases battery life and minimizes water topping.
  • Programmed inbuilt Cooling Fan which operates automatically when needed
  • Electrolyte Level Sensor indicator – Indicating Battery Water Level Low (Optional)
  • Mains bypass facility
  • LCD Display for better user Interface and displaying the State of Battery Voltage, AC Mains Input Voltage, Actual Applied Load in %age, Overload Protection, Short Circuit Trip Protection, Battery Low Pre Alarm and Trip Protection, AC Mains Fuse Blown Indication as FUSE TRIP & UPS/Normal Mode Selection
  • Protection – Inbuilt high-precision quality protection into Main PCB
Model Maximum Load Capacity in Watts
650 VA 450
850 VA 580
1450 VA (24V) 1000
1450 VA (12V) 1000

SPECIFICATIONS OF EXIDE PURE SINE WAVE – GQP

  • Mains AC Lower Voltage Limit : 100V ± 10V in Inverter Mode
  • Mains AC Lower Voltage Limit : 180V ± 10V in UPS Mode
  • Mains AC Higher Voltage Limit : 280V ± 10V in Inverter Mode
  • Mains AC Higher Voltage Limit : 260V ± 10V in UPS Mode
  • Output Voltage at No Load : 220V ± 7V AC
  • Output Wave Form at No Load : Pure Sine Wave
  • Home UPS Output Frequency : 50 ±1.0Hz
  • Low Battery Cut Off : 10.5 ± 0.2 V
  • Change over time Mains to UPS and vice versa : < 10 msec (at mains Low and High cut)
