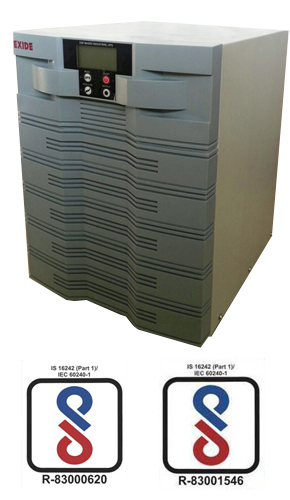

FEATURES OF EXIDE HIGH KVA UPS RANGE
- DSP (Digital Signal Processor) based Pure Sine Wave Industrial UPS and Grid Quality Power same as Mains
- ASIC (Automatic Sense Intelligent Control) Technology – Automatically senses battery condition and adjusts Charging Current accordingly and thus increases battery life and minimizes water topping.
- Smooth operations of AC motors and other loads unlike the irritating noise that comes from Modified Sine Wave Systems
- Extremely low Total Harmonic Distortion (<3%)
- Electronic Changeover ensuring compatibility with Computers
- Special TDR (Time Delay Relay) output option, for compressor based applications like AC a Short Circuit protection in Mains mode
- Capability of Surge Load up to 300%
- Very less operating cost in comparison with Online UPS and DG sets
- Equipped Bypass Switch to avoid the problems during system failure in higher ratings
- Suitable with DG sets
- Programmed inbuilt Cooling Fan which operates automatically when needed
- Multi Color LCD Display: for better user Interface and displaying State of Battery Voltage, AC mains Input Voltage, Applied Load in %age, Overload Protection, Short Circuit Protection, Battery Low/ Overcharge Protection, AC MCB Trip/ Fuse blown Indication, Over Temperature Protection etc. Multi Color LCD Display:
- – Perrot Green Color Backlight at Back-up Mode
- – Bright Green Color Backlit at Mains Mode
- – Red Color Backlit for any Protection
Product Description
FEATURES OF EXIDE HIGH KVA UPS RANGE
- DSP (Digital Signal Processor) based Pure Sine Wave Industrial UPS and Grid Quality Power same as Mains
- ASIC (Automatic Sense Intelligent Control) Technology – Automatically senses battery condition and adjusts Charging Current accordingly and thus increases battery life and minimizes water topping.
- Smooth operations of AC motors and other loads unlike the irritating noise that comes from Modified Sine Wave Systems
- Extremely low Total Harmonic Distortion (<3%)
- Electronic Changeover ensuring compatibility with Computers
- Special TDR (Time Delay Relay) output option, for compressor based applications like AC a Short Circuit protection in Mains mode
- Capability of Surge Load up to 300%
- Very less operating cost in comparison with Online UPS and DG sets
- Equipped Bypass Switch to avoid the problems during system failure in higher ratings
- Suitable with DG sets
- Programmed inbuilt Cooling Fan which operates automatically when needed
- Multi Color LCD Display: for better user Interface and displaying State of Battery Voltage, AC mains Input Voltage, Applied Load in %age, Overload Protection, Short Circuit Protection, Battery Low/ Overcharge Protection, AC MCB Trip/ Fuse blown Indication, Over Temperature Protection etc. Multi Color LCD Display:
- – Perrot Green Color Backlight at Back-up Mode
- – Bright Green Color Backlit at Mains Mode
- – Red Color Backlit for any Protection
TECHNICAL SPECIFICATIONS OF EXIDE HIGH KVA UPS RANGE
| Description | 2KVA | 2.5KVA | 3.5KVA | 5.2KVA | 7.5KVA | 10KVA | 12KVA |
| Nominal Battery Voltage | 24V | 36V | 48V | 48V | 120V | 180V | 192V |
| 48V | 96V | ||||||
| Full Load Output Current (Back up Mode) | 6A ± 1A | 8.6A ± 0.5A | 11A ± 0.5A | 18A ± 0.5A | 27A ± 0.5A | 34A ± 0.5A | 42A ± 0.5A |
| Input Voltage (Normal Mode) | 90V to 300V ± 10V | 100V to 280V ± 10V | |||||
| Input Voltage (UPS Mode) | 180V to 260V ± 10V | ||||||
| Display | LED Display | LCD Display :
Input Voltage, Applied Load Percentage, Battery Charging/ Charged, Battery Voltage, Battery Low or Over Charge Protection, Short Circuit Protection, AC Fuse Blown/ MCB Trip Protection, Overload Trip, Over Temperature |
|||||
